Tip-L


Tam ərazi təhlükəsizlik və mühafizəsi, inteqrasiya olunmuş nümayiş cihazı, şarj çox yönlülüyü

  • 1
    1250 * 600 * 700mm

    Bədən ölçüləri

  • 2
    ± 0.3mm

    Birləşdirilmiş Dəqiqlik

  • 3
    SLAM və QR KODU

    Naviqasiya Metodları

  • 4
    Maksimum 670 kq

    Platforma Yükləri

  • Product Features
  • spesifikasiya
  • Tətbiq ssenarisi
  • Daha Products
  • araşdırma
Product Features

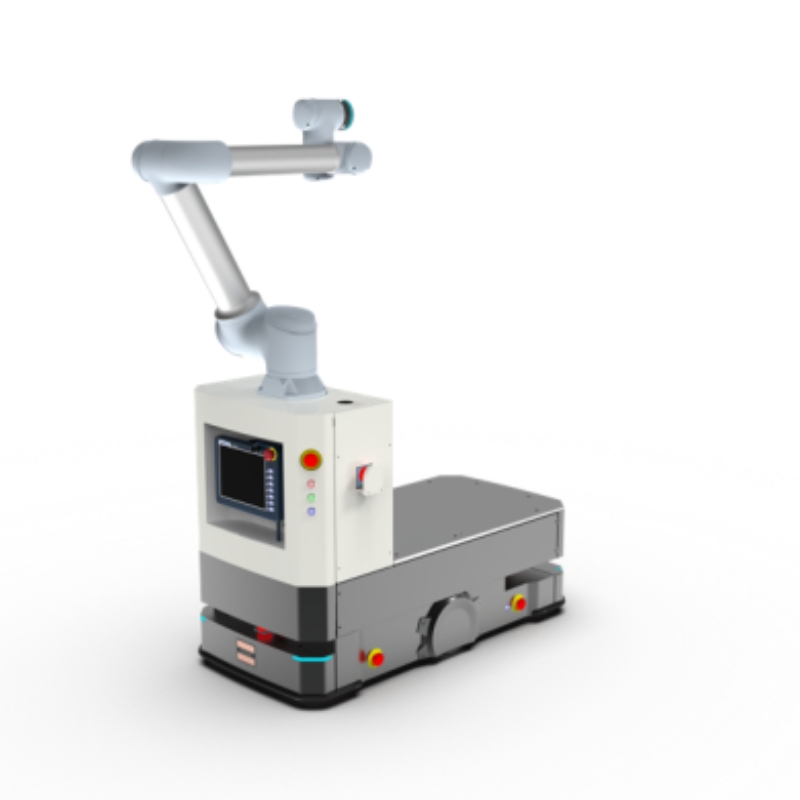

The DUCO-L composite robot integrates independently developed mobile platforms and collaborative robots. It can be equipped with autonomously developed vision systems, fixtures, and other execution units to achieve functions such as material handling, assembly, inspection, and precision machining. The DUCO-L composite robot offers comprehensive safety protection, multiple interaction and communication methods, and seamless integration with customer systems. It also provides customized solutions, customized scheduling systems, on-site guidance, and comprehensive after-sales services to ensure a satisfactory customer experience. As a standardized product, the DUCO-L composite robot possesses consistency, reliability, and stability that non-standard equipment lacks.

spesifikasiya

HC-X2-L
Ölçü (U*E*H, əməkdaşlıq qolu və yan maneələrin qarşısının alınması lazeri istisna olmaqla) 1250mm x 600mm x 700mm
Hərtərəfli Dəqiqlik ± 0.3mm
Çəkisi Approximately  320 / 330/ 361/ 350 /360 kg (Equipped with a collaborative arm GCR5/10/14/16/20.)
Naviqasiya rejimi SLAM və QR KOD
Cobot yükü 5kg/ 10kg/ 14kg/ 20 kg (Equipped with a collaborative arm GCR5/10/14/16/20.)
Platforma Yükü Maksimum 670 kq
Mobil Bacarıq Sürücülük forması İki təkərli diferensial
Radiusu çevirmək 500 mm Min
Xərçəng Sürəti (İstənilən Bucaq) /
Piyada keçidinin eni 900 mm Min
Hərəkət sürəti 1m / s
Dönmə sürəti 0.5m / s
Maneə Aralığı Hündürlüyü 10mm
Xəndəyin eni 30mm
Təmizləmə 30mm
Dərəcəli <5%
Park Dəqiqliyi ± 5 mm Mövqe dəqiqliyi, ± 1° Bucaq dəqiqliyi
Batareya performansı batareya DC51.2V Litium dəmir fosfat
tutum 52Ah
Vaxt keçir Təxminən 5.5 saat
vaxt doldurulması 1.8 h
Şarj rejimi Contact charging (manual or automatic)
Təhlükəsizlik cihazı Toqquşma aşkarlanması/təhlükəsizlik toxunuş kənarı/maneədən yayınma lazeri/təcili dayanma və s.
Interface Avadanlıq CAN şinini, RS-485, RS-232, RJ45, USB-ni dəstəkləyir
Rabitə protokolları CANOPEN, Modbus və s. dəstəkləyir.
Button Başlat düyməsi / Fasilə düyməsi / Sıfırla düyməsi / Öyrət düyməsi
İstifadə mühiti Ətraf mühitin temperaturu: -10°C-45°C
Ətraf mühitin rütubəti: 5% - 95% (kondensasiya yoxdur)
İş mühiti: yalnız qapalı məkanda istifadə üçün.
Təmizlik səviyyəsi: Yoxdur/6-cı sinif (min səviyyəli)/5-ci sinif (yüz səviyyəli)
